Key Features and Benefits

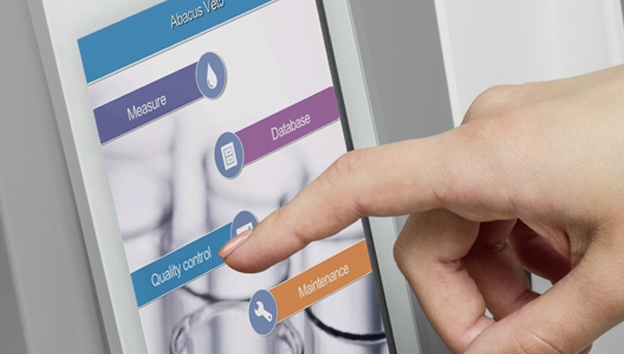

• Easy to use – With its large capacitive touch screen and user-friendly interface allows accurate data entry and monitoring of results and histograms enabling fast and efficient operation. Results can be retrieved via an on-board printer or an external printer. For those practices/clinics requiring it the system can easily connected with a host computer via the HL7 connection or via the serial communication port.
• Convenient – Its compact size and associated reagent pack mean that the system does not need much space and storage and shipping of reagents is simple.
• High performance - The Abacus Vet5 offers 5 part differential WBC results on Dog, Cat, Cattle, Horse, and 3 part differential WBC results on Mouse, Rat, Rabbit, Ferret, Sheep, Goat, Pig, Guinea Pig and Primate.
• Reliable and efficient- Each Abacus Vet5 analyzer is almost maintenance-free resulting in minimal downtime and can store up to 5000 results.

Specifications

MEASUREMENT

• Throughput: Up to 25 samples/hour
• Parameters: 24 hematology parameters, including 5-part WBC differential: WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HCT, MCV, RDWc, RDWs, HGB, MCH, MCHC, PLT, PCT, MPV, PDWc & PDWs
• Impedance technology
• Sample volume: 25/50 µl of whole blood in 3/5 part mode
• Sampling method: Open tube system with automatic sample rotor
• Sample profiles
  • Five-part mode: Dog, cat, horse and cattle
  • Three-part mode: Mouse, rat, rabbit, ferret, pig, sheep, goat, guinea pig and primates



REAGENTS

• Reagent pack containing Isotonic Diluent (Dil Vet), Lyse Vet, Diff Vet5, Cleaner & Rinse Vet
• Hardware key protected pack
• Test size up to 200 measurements



USER INTERFACE

• Easy-to-use, menu driven user interface without hardware function buttons
• Data storage capacity: Up to 5000 results, including histograms
• Printer options: Built in thermal printer
• Trend function allows to display with a Levey-Jennings chart the selected records from the database



PHYSICAL PARAMETERS

• Size (Width x Depth x Height): 32 cm x 28 cm x 37 cm (12.4” x 10.8” x 14.5”)
• Weight: ~13 kg, 28.6 lbs



*This product is not currently cleared for sale in the USA and only available in non-US markets. For more information of precise product availability please contact the appropriate regional Diatron office.
