CLINODIGIT
OMEGAOneSystem
AllExamination
NoCompromises
Digital fluoroscopy
Digital Radiography
Accurate image stitching
Digital Chest
Digital Emergency

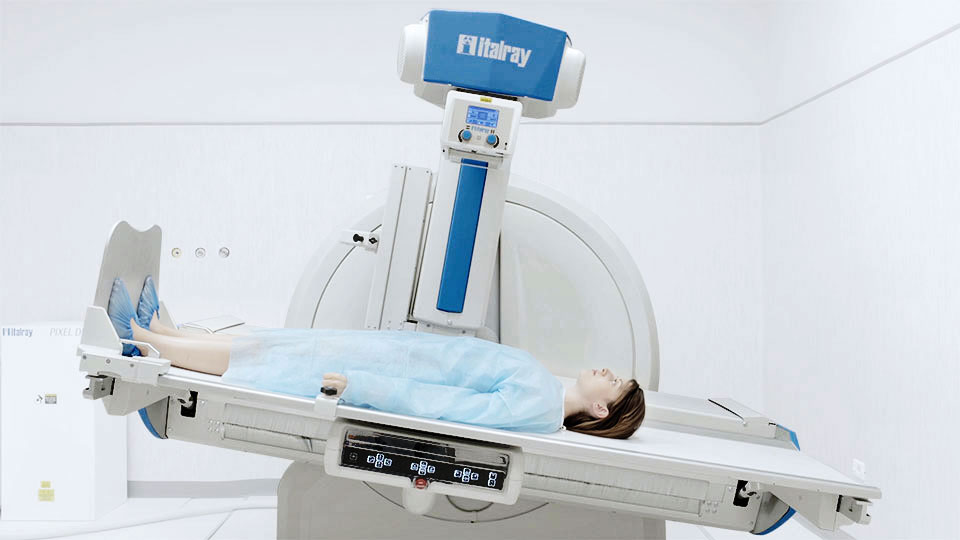

Multifunctional system with Dynamic Flat Panel Detector for radiography and fluoroscopy room
CLINODIGIT OMEGA is a revolutionary system: a remote-controlled table designed and built for use with a digital detector, which allows every examinations in just one radiography and fluoroscopy room. CLINODIGIT OMEGA is equipped with a latest-generation 43×43 cm (17”x17”) which ensures exceptional image quality, unsurpassed productivity and minimal patient dose. CLINODIGIT OMEGA significantly increases department productivity and efficiency, and at the same time ensures maximum comfort and safety for patients and operators

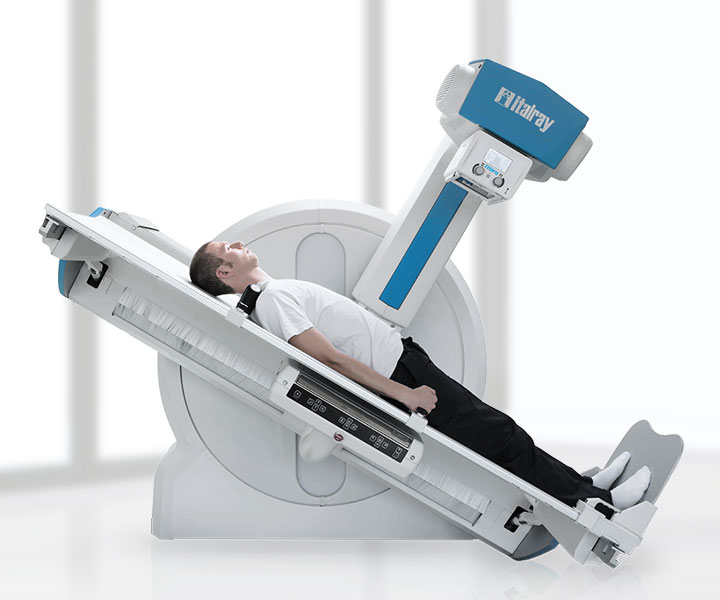

Full + 90°/-90° tilting for contrast studies
Complete tomography and contact examinations
Chest examinations with minimal patient-detector distance (TTT Movement)
All radiography and fluoroscopy examinations directly on a stretcher (TTT Movement)
Tabletop motorized movement that removes patient table from detector active area

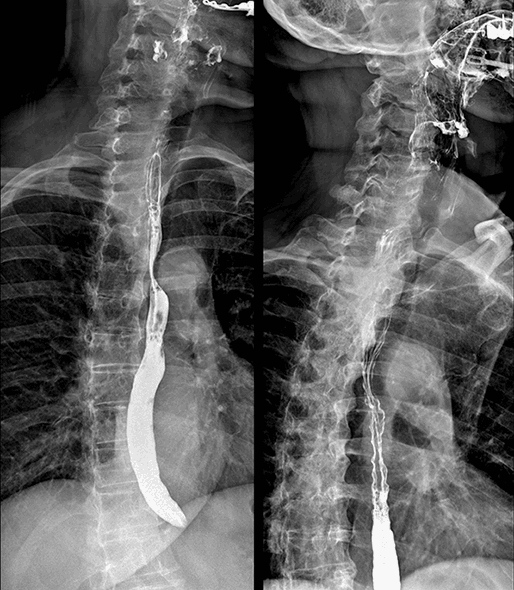

All examinations demanded to a fluoroscopy room are available with CLINODIGIT OMEGA: from standard positioning and scouting to Gastrointestinal, Urological/Gynaecological, Musculoskeletal, Swallowing, ERCP Procedures, Myelography, Interventional Procedures, Lymphography, Angiography – DSA, and Paediatrics. A remote-controlled compression cone, removable if necessary, is available as option for examinations on the digestive system. Thanks to the innovative 43×43 cm (17”x17”) dynamic flat panel detector, many fluoroscopy image formats are available according to the specific procedure, with the flexibility of adjusting from lower frame rates (for dose reduction) up to full-performance Pulsed Fluoroscopy 30 fps, for very demanding applications.
Increase the productivity of the department, as all the exams can now be performed with a single device, with maximum return on investment
It introduces a general cost reduction with minimum space requirements, and the possibility to train personnel and carry out any assistance on a single system
It guarantees excellent image quality and minimal patient dose thanks to high values of sensitivity, contrast and resolution of the digital detector

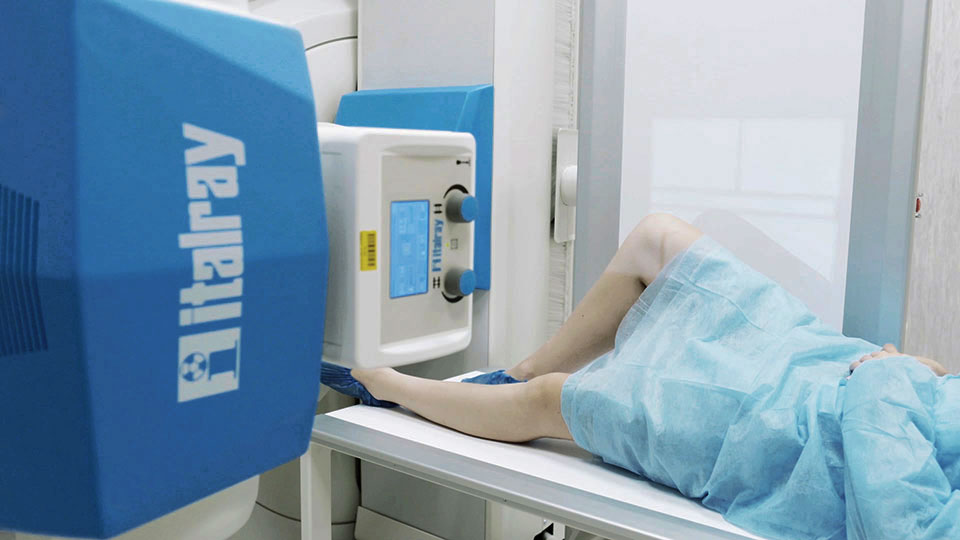

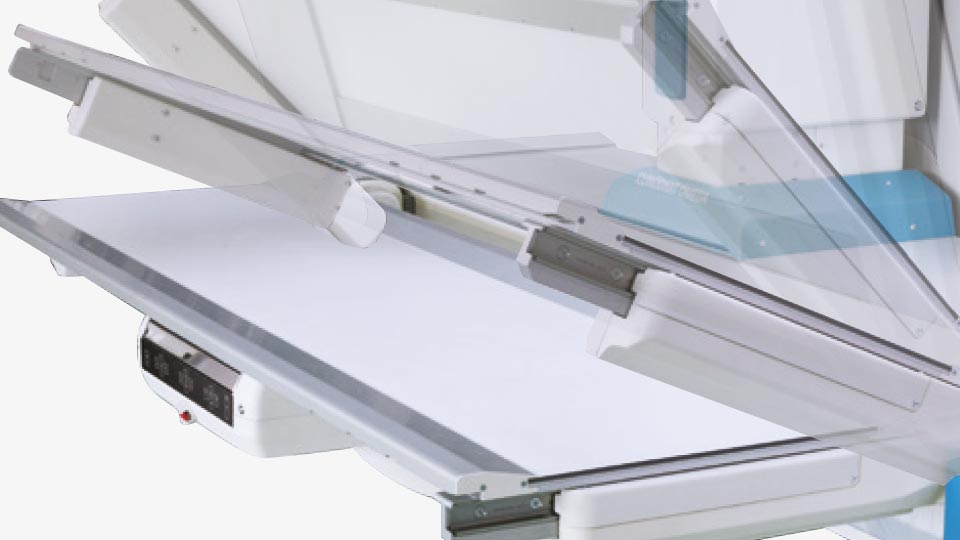

Thanks to the TTT (Tilting-Table-Top) movement, CLINODIGIT OMEGA can easily carry out ALL RADIOGRAPHIC EXAMS, without any limitation due to the presence of the patient table. This allows to reduce the patient-detector distance and allows the positioning of the patient without hindering the result of the projection, whatever it is (Skull, Abdomen, Vertebral Column, pelvis also under load).
The innovative All-In-One control console featuring a large touch screen interface and predefined system working positions
Provides maximum comfort to the patient thanks to extra-low tabletop height and full head-to-toe scanning with no need for potentially risky/uncomfortable patient movements
Increased connectivity to the RIS radiological information system and PACS thanks to the full DICOM 3.0 compliance

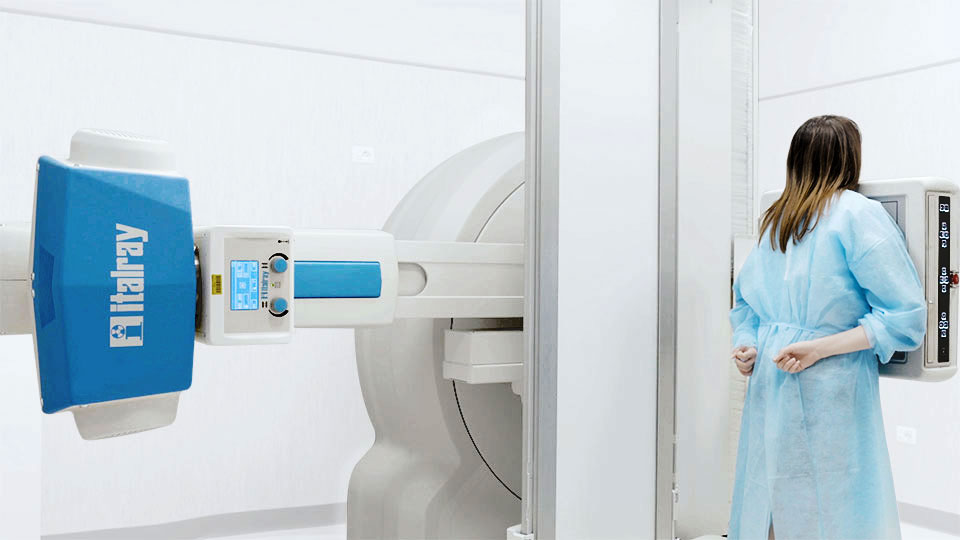

CLINODIGIT OMEGA has been designed to perform thoracic examinations. Thanks to the TTT movement it is possible to carry out this type of examination with patient in direct contact to detector and in a correct position. This is impossible with traditional remote controlled tilting tables, but it is now possible with CLINODIGIT OMEGA. A best-in-class 200 cm (79”) focal distance, allows to eliminate any geometric distortion in the chest image, hence further improving the already outstanding image quality

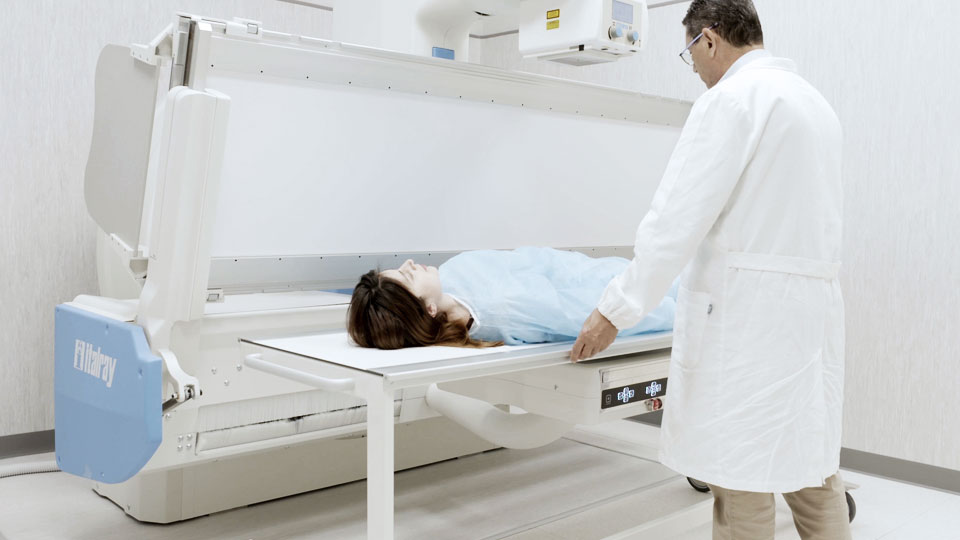

CLINODIGIT OMEGA the ideal system for Emergency applications. Thanks again to the TTT Movement, all radiography and fluoroscopy exams can be performed directly on the mobile table and without any need for moving the patient from the mobile table to the system tabletop, which is a very risky procedure with heavily traumatized patients! This also ensures a reduction of time required to carry out the examination itself, a feature that, in the life of an Emergency Department, is fundamental. Moreover, with the innovative dynamic flat panel detector, all static and dynamic X-ray images are immediately available for review thus allowing for instantaneous diagnosis.
Thanks to TTT Tilting-Table-Top Movement, CLINODIGIT OMEGA can flawlessly perform ALL RADIOGRAPHIC EXAMS, without any limitation due to the tabletop presence. This allows to reduce patient-detector distance and permits patient positioning with no impediments for perfect projections
Discover all the features system
Italray can “remotely” check the condition of the equipment via a simple Internet connection.
Very high image quality thanks to the everest-x hierarchical algorithm.
Italray ha sviluppato questo algoritmo che migliora il contrasto e la risoluzione spaziale dell’immagine acquisita. I parametri di elaborazione vengono automaticamente applicati sull’immagine per ottimizzarne la qualità ed il contenuto diagnostico.
Immagini di parti anatomiche a bassa e ad alta attenuazione perfettamente acquisite grazie all’elevato range dinamico dei detettori utilizzati. Algoritmo di image enhancement per la visualizzazione di dettagli anatomici anche su immagini ottenute con basse dosi.
In the multifunctional system CLINODIGIT OMEGA, with a 43×43 cm detector (the largest size available on the market today) all anatomical districts can be imaged, even in presence of tall/corpulent patients. The imaging area is almost 50% larger when compared with 16” Image Intensifiers.

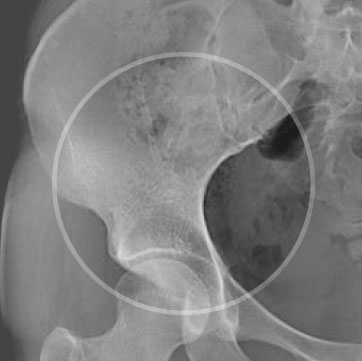

Comparison with a 12” I.I.

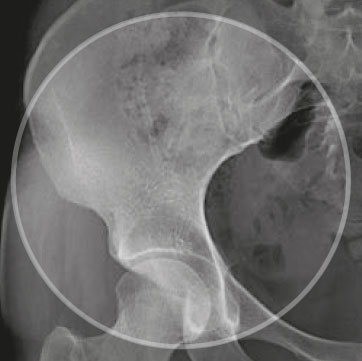

Comparison with a 16” I.I.

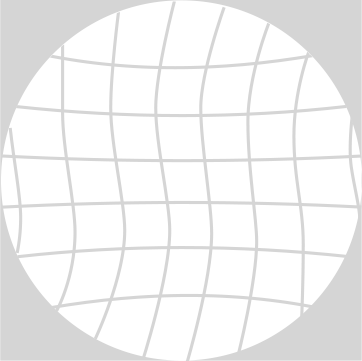

The Flat Panel Detector removes the distortion problem typical of systems with Image Intensifier.
Comparison with a 16” I.I.
ALL APPLICATIONS in a FLUOROSCOPY ROOM are available with CLINODIGIT OMEGA from standard positioning and scouting to Gastrointestinal, Urological/Gynaecological, Musculoskeletal, Swallowing, ERCP Procedures, Myelography, Interventional Procedures, Lymphography, Angiography – DSA, and Paediatrics. A remote-controlled compression cone, removable if necessary, is available as option for examinations on the digestive system.
Thanks to the innovative 43×43 cm (17”x17”) DYNAMIC FLAT PANEL DETECTOR, many fluoroscopy image formats are available according to the specific procedure, with the flexibility of adjusting from lower frame rates (for dose reduction) up to full-performance Pulsed Fluoroscopy 30 fps, for very demanding applications.
